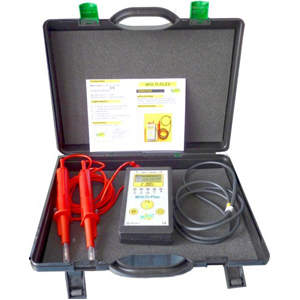

MULTI-FLEX is a simple hand-held instrument for working Live LV which measures AC Voltage and Current, and displays Voltage, Current, Power and Power Factor. The latest version also has a Continuity Test function to verify circuit continuity and earthing. It has a wrist-strap to leave both hands free for the probes and uses a slim Rogowski coil pick up for the current measurement so that it can be used in any situation including confined spaces.

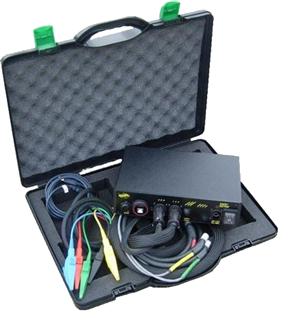

The TRIDENT range of Power Quality analysers are very easy to use recorders for recording and analysing the detailed behaviour of the voltages, currents and power flows in a one or three phase LV network. There are versions both with and without displays, and also a weatherproof version.
The QUADRENT Power Quality recorder/analyser is an easy to use instrument for recording and analysing the behaviour in detail of the voltages, currents and power flows in a single or three-phase LV network. The Power Quality analysis to EN50160 includes slow fluctuations, dips, swells, short & long interruptions, frequency deviations, flicker and Harmonics and Inter-Harmonics up to the 51.5 level. The recorder is configured for a measurement program using a PC via a USB connection. In operation it is powered from the voltage connections and LEDs confirm the system status. Real time measurements can be displayed on a PC. The data obtained is transferred to the PC and the easy to use software is used for analysis and correlation of the measurements and preparation of a written report.
More information on these products can be found on the MADE-SA web site www.made-sa.com
